Heart with SWIM (Sequential Wave Imprinting Machine)

The ECG (Electro Cardio Gram) or ΗΚΓ (Ηλεκτρικά καρδιά γραπτή) waveform is visible on a space-base rather than a time-base. When moving, this creates a physical (phenomenological) augmented reality.

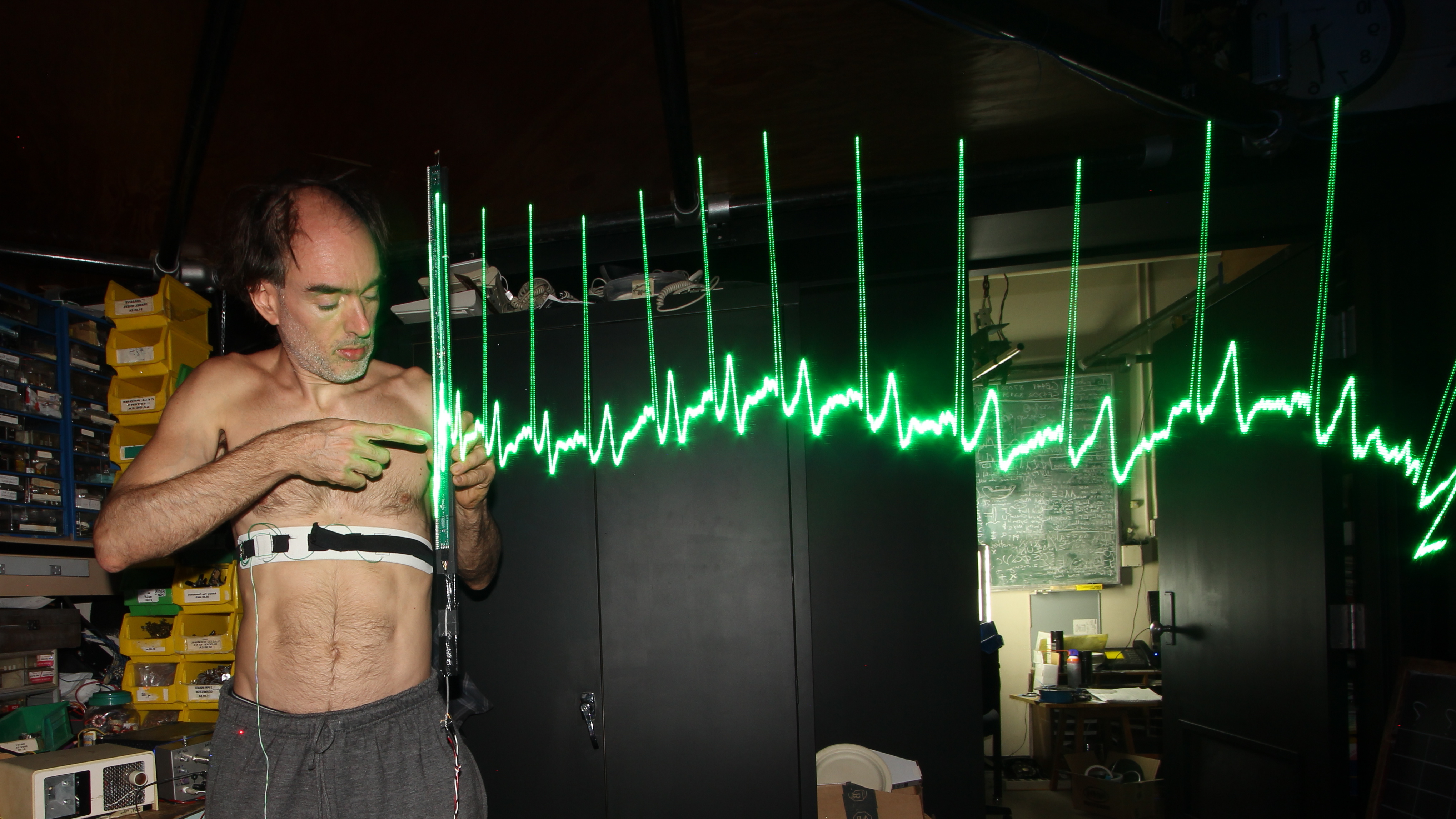

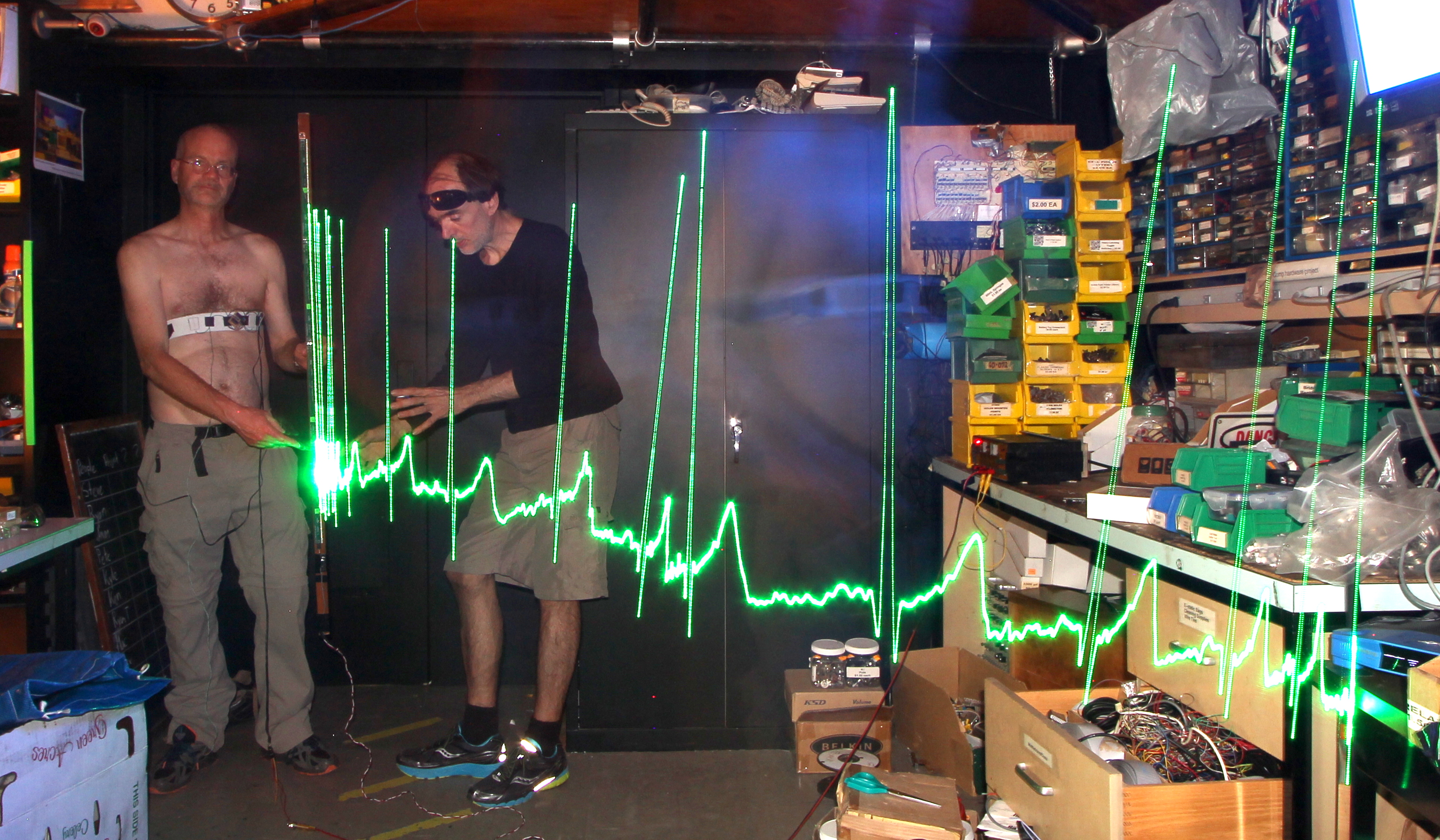

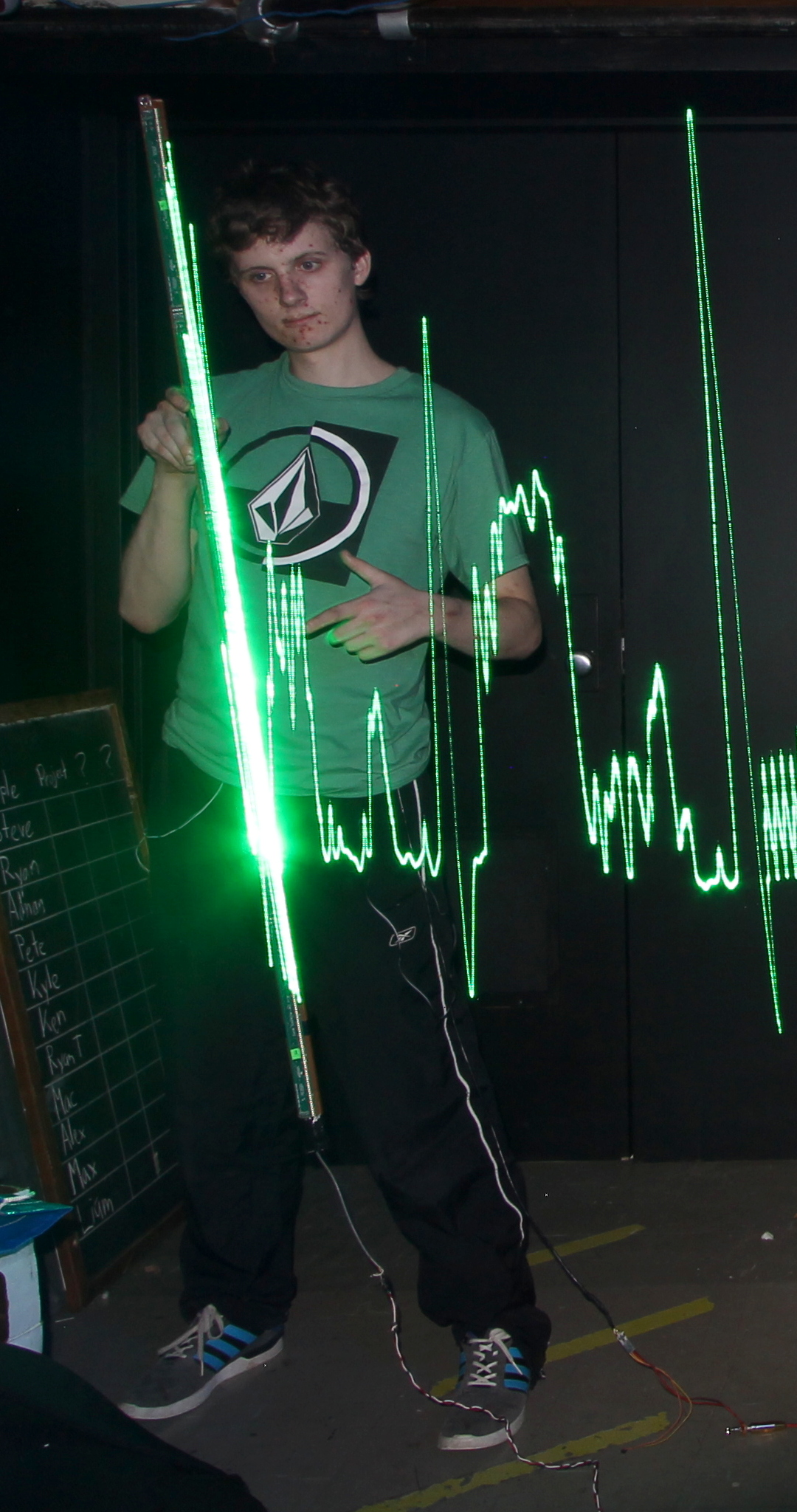

200 pixel S.W.I.M.:

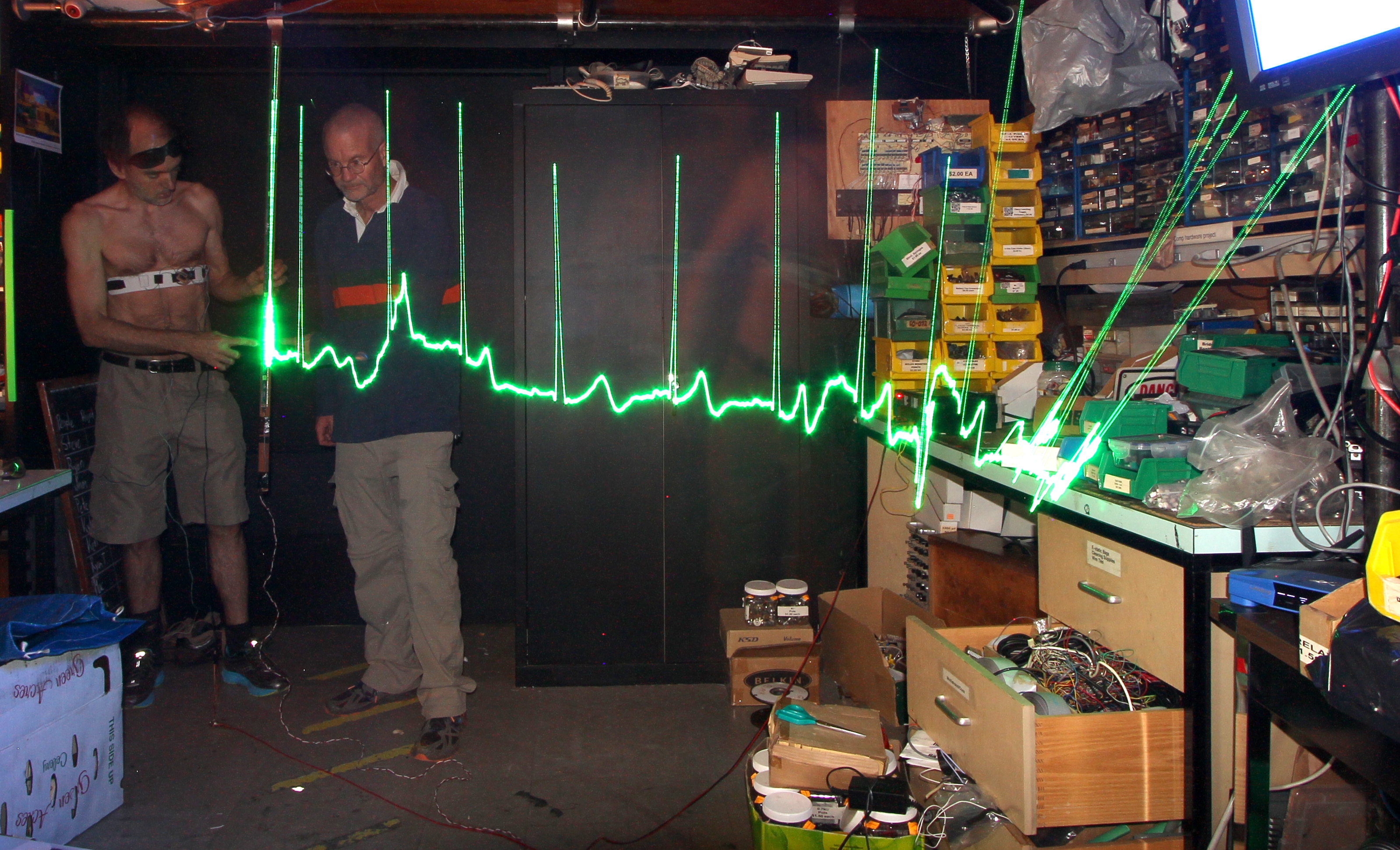

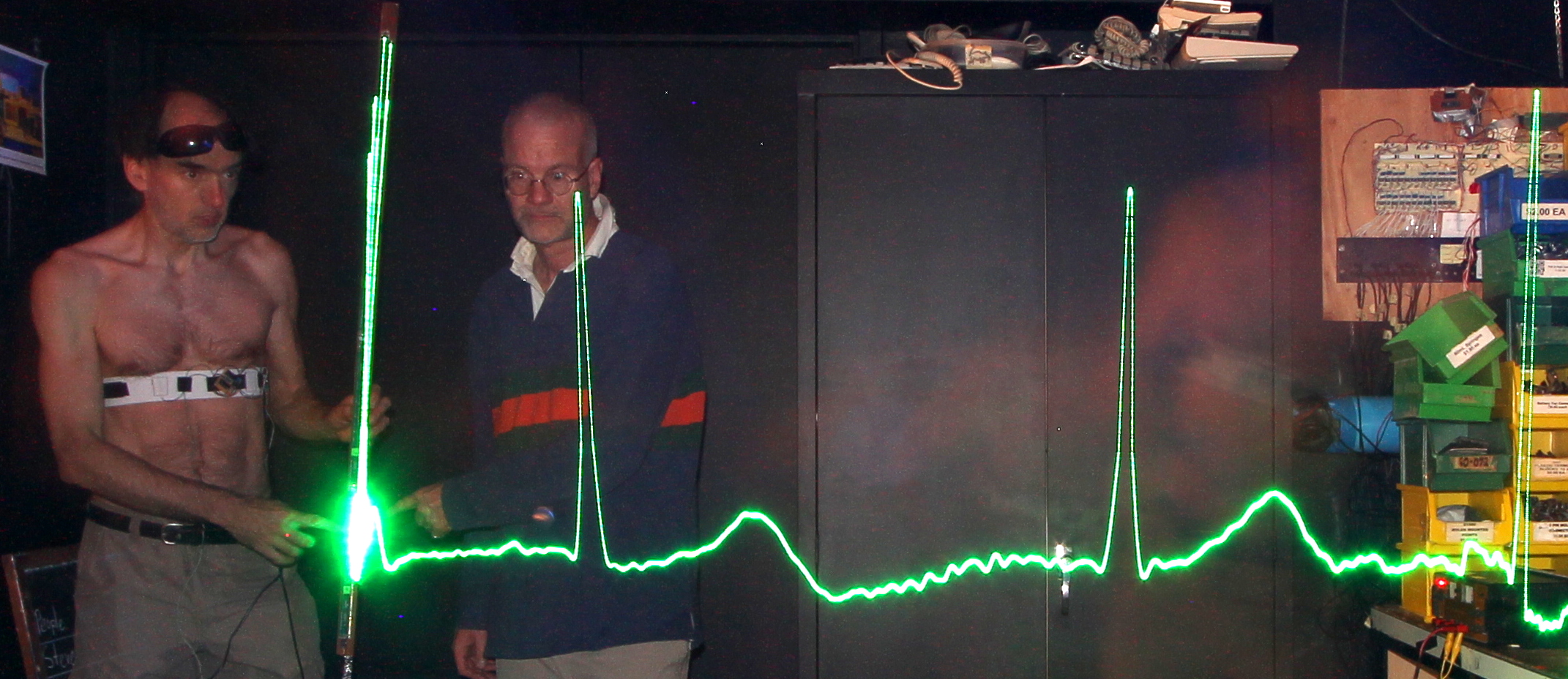

500 pixel S.W.I.M.:

References

  1. Phenomenal Augmented Reality, IEEE Consumer Electronics, Volume 4, Number 4, October 2015
  2. Sequential Wave Imprinting Machine
