here's some pictures we took of the keyer circuit assembled by ece1766 student Jan Grabski, following our ece1766 directions:
front view of board

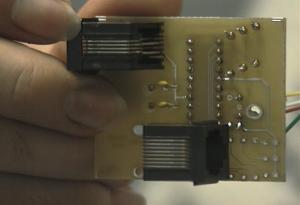

back view of board Note that connectors must be put on backards if not using a sense-reversing barrel.
